PowerMaster® 7 Series

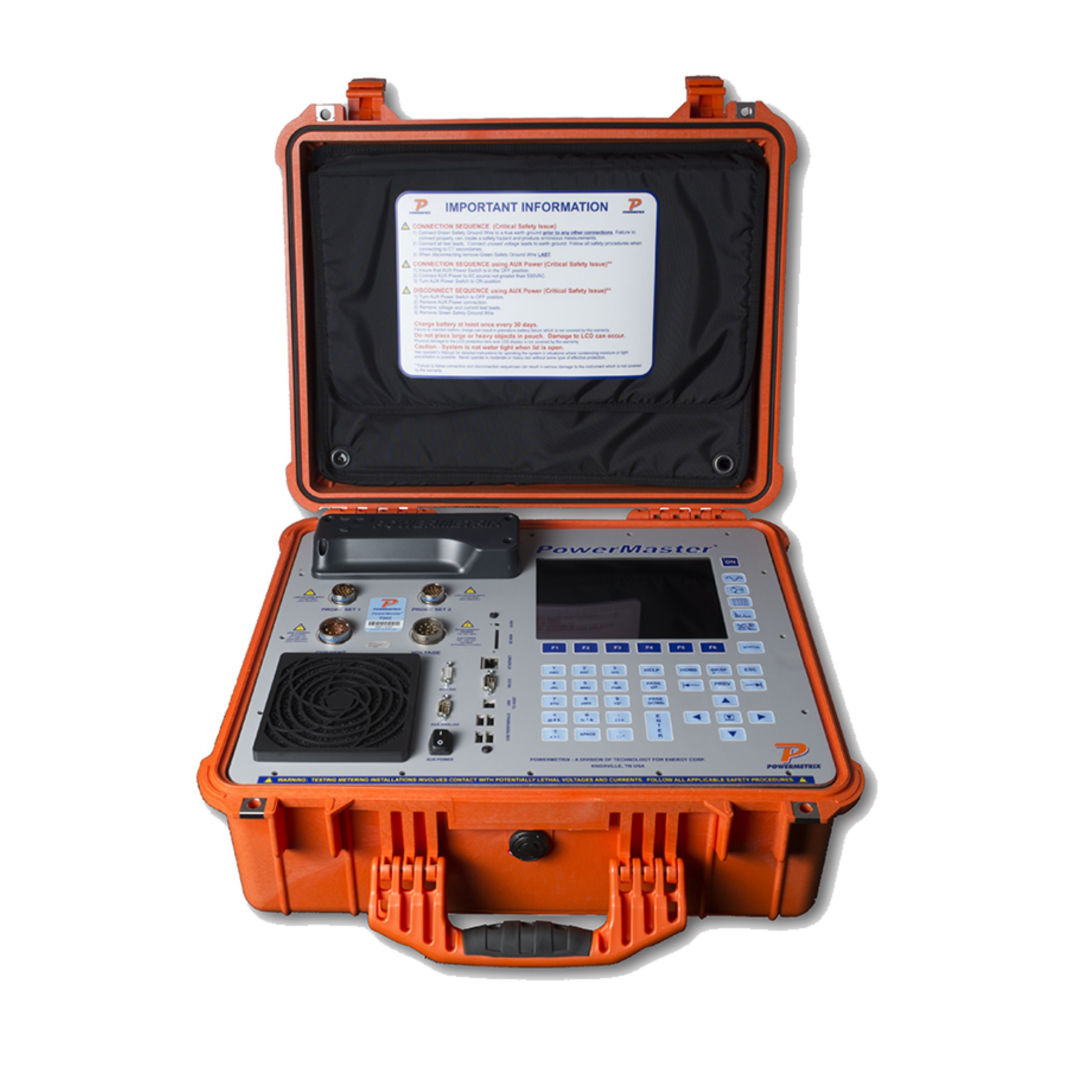

The PowerMaster® 7 Series is a Complete Field Meter Site Testing Solution

A true 3-phase analyzing reference standard with internal 3-phase current and voltage source capability.

he innovative design of the PowerMaster® 7 Series allows utilities to fully test a metering installation with one piece of equipment. Customer load meter testing, phantom load meter testing, CT burden and ratio testing, CT de-magnetization, PT ratio testing, and transducer testing can all be performed with one solution. In addition, vector diagrams, voltage and current waveforms, and harmonics data up to the 100th harmonic can all be analyzed to complete a true wiring verification.

Mobirise

• Meter, Transformer & Wiring Testing
• True 3-phase Analyzing Reference Standard
• Internal Current & Voltage Source
• More accurate than most lab standards

• ±0.02% Accuracy Class
• True Three Phase Analyzing Reference Standard
• Optional Three Phase Current & Voltage Source
• Customer Load & Phantom Load Meter Testing
• Demand Testing (with End-To-End Testing)
• Three Phase CT Testing
• Three Phase PT Testing
• CT “Dead Site” Testing
• CT Demagnetization
• Transducer Testing

DIRECT INPUTS
AC Current:
• 3 Inputs, 0 to 20A or 0 to 50A (model dependent)
• 1 uA Resolution

AC Voltage:
• 4 Inputs, 30 to 600V
• 1uV Resolution

Aux. Power:
• 1 Input, 100 to 530VAC

PROBE INPUTS
• Two sets of three inputs
• Resolution and range determined by probe

Display Resolution: 640 x 480, full color transflective VGA
Display Size: 8.4 inches
Operating Temperature: -20C to 50C (-4F to 122F)
Storage Temperature: -30C to 60C (-22F to 140F)
Humidity: 0 to 95% non-condensing
Internal Battery: 14V NiMH rechargeable
Dimensions: 21 in x 17 in x 8.5 in
Weight: Not including cables
Model: 7300 29.4lbs (13.3kg) 7302 35.6lbs (16.1kg)
Model: 7305 38.4lbs (17.4kg) 7332 42.2lbs (19.1kg)
Model: 7335 45.0lbs (20.4kg)

• Pulse Inputs: 3 (meter pulse input, standard input, aux input)
• Pulse Outputs: 2 (standard output, sync output)
• USB to PC Port: 1 (connectivity to PC)
• USB Ports: 4 (peripheral devices and barcode reader)
• Ethernet Port: 1 (high speed connectivity including internet)
• RS232 Port: 1 (legacy devices)
• SD Memory Port: 1 (removable SD Memory support)
• Audio Port: 1 (microphone, headphones)

Energy:
• Wh, VARh, VAh
• +/- 0.02% Accuracy

Power:
• Watt, VAR, VA
• +/- 0.02% Accuracy

Power Factor:
• -1.00 to 1.00

Harmonics:
• Up to 100th harmonic (user selectable)

VOLTAGE SOURCE
Voltage Output
:
• 30V to 480V (7332, 7335)
• Phase Adjustment: 0 to 360 degrees

CURRENT SOURCE
Current Output
:
• 0.1A to 20A (7302, 7332)
• 0.1A to 50A (7305, 7335)
• Phase Adjustment: 0 to 360 degrees

Applications

  • Customer load meter testing
  • Phantom load meter testing
  • CT burden and ratio testing
  • CT demagnetization
  • PT ratio testing
  • Transducer testing
  • Optional Three Phase Current & Voltage Source
  • Demand Testing (with End-To-End Testing)
  • Three-Phase CT Testing
  • Three-Phase PT Testing
  • CT “Dead Site” Testing
