Dranetz HDPQ - DN (DataNode)

Enhanced Powerful PQ Monitoring Technology – Do More With A Dranetz!

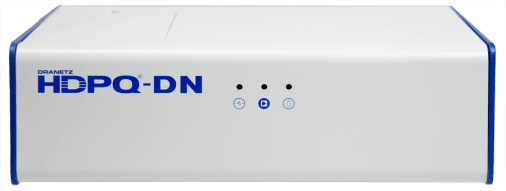

The Dranetz HDPQ-DN offers enhanced monitoring technology and meets the current internationally recognized PQ monitoring standards, including IEC 61000-4-30 Edition 3 Class A, IEEE 519:2014 and more. The advanced PQ monitoring capabilities from Dranetz enable you to detect PQ problems that other instruments may miss, such as negative transients, notching, intermittent switching & harmonics, and other problems that can only be captured using our proprietary waveform difference triggers. Applications include utility substation, capacitor bank evaluations, UPS/mission critical environments, medical imagery and more. Like all Dranetz HDPQ instruments, the HDPQ-DN offers a base sampling rate of 512 samples per cycle which offers the best base transient capture capability in the industry.

Mobirise

Features

• 4 models available to meet any circuit connection need
• IEC 61000-4-30 Class A Edition 3 compliant – Certificate of • Conformity from an independent laboratory
• DNP3 and Modbus communications
• For new monitoring systems
• Add to existing 61000 system
• Direct replacement for the 61000 (61STD) – Reuse all mounting hardware, pods, etc.
• Compatible with PQView DE

Voltage
• Channels: (4), differential inputs, AC/DC
• Sampling: 512 samples/cycle, 16 bit A/D, synchronous sampling
• Range: 1-600 Vac/dc
• Full Scale Accuracy: 0-600V, +/-0.1% of reading, <40V +/-0.5%FS
• Frequency: 50Hz, 60Hz
• Power quality to IEC 61000-4-30 Class A Edition 3
• Harmonics: Per IEC 61000-4-7, individual harmonics to the 127th
• Input impedance: 10MΩ to ground

Current
• Channels: (4), differential inputs, AC/DC
• Sampling 512 samples/cycle, 16 bit A/D
• Range: Model & CT dependent. 1.5Vrms FS, 5A or 1A
• Accuracy: 0.1% reading. Does not include CT
• Power quality to IEC 61000-4-30 Class A Edition 3
• Harmonics: Per IEC 61000-4-7, individual harmonics to the 63rd

Memory
• 4GB

Instrument Power
• 90 to 250V AC 50/60Hz
• 100 to 300V DC
• 15 minute internal UPS (user replaceable battery)

• Range: 0 – 200VDC
• 1KHz sampling, Edge or level triggered,
• Logic programmed by user (active high or active low)
• Time stamped to the millisecond
• Screw terminals

• Standard: RJ45 TCP/IP Ethernet, USB
• Optional: 3G/4G cellular
• Protocols: XML, Modbus TCP, DNP3
• Time synchronization: NTP, optional internal GPS or IRIG-B

Monitoring Compliance
• IEC 61000-4-30 Class A Edition 3, IEC 61000-4-7, IEC 61000-4-15
• EN 50160, NVE, IEEE 1453, IEEE 519:2014

Safety and Standard
• UL, CE, ISO9001

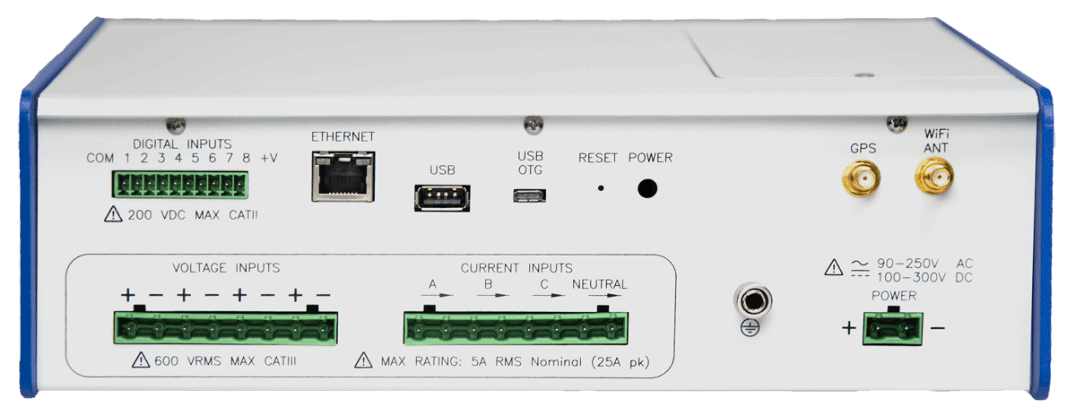

• HDPQ-DN-MVS: Screw terminals for voltage and current

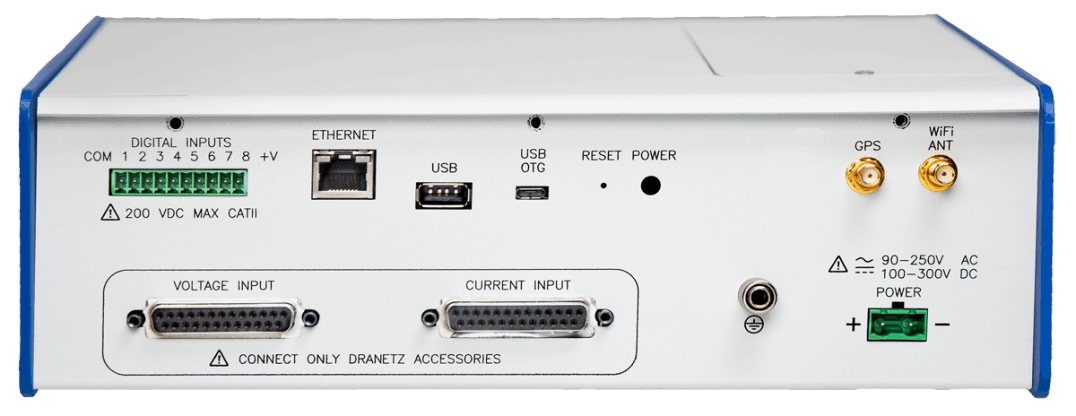

• HDPQ-DN-MZP: Pod connections for use with Dranetz voltage and current pods

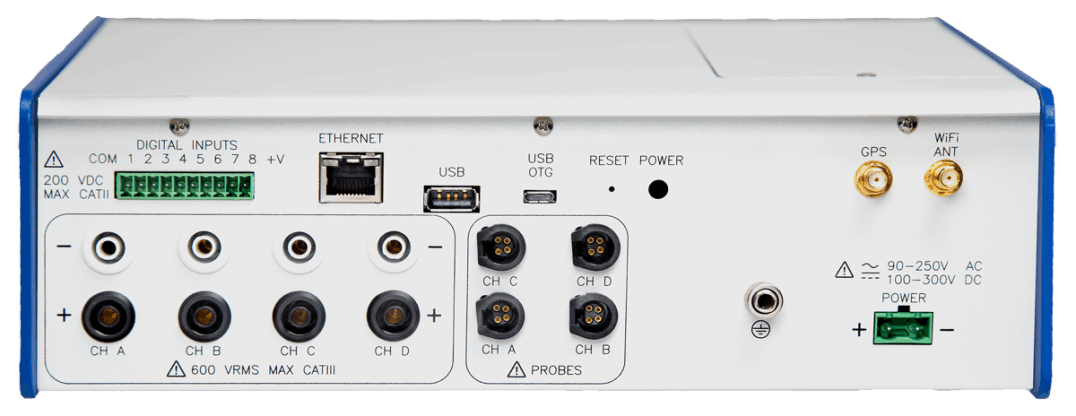

• HDPQ-DN-MVB: Safety connectors for voltage, Dranetz TR connectors for Flex and clamp-on CT’s

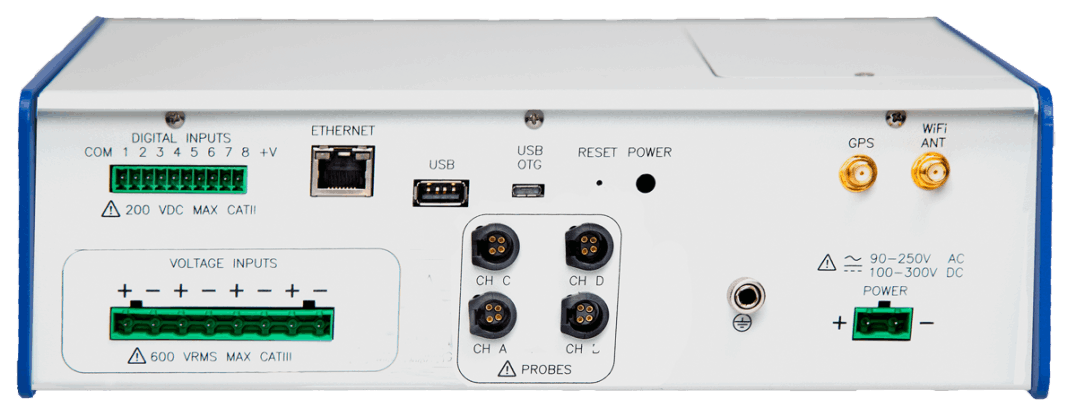

• HDPQ-DN-MVSTR: Screw terminals for voltage, Dranetz TR connectors for Flex and clamp-on CT’s
