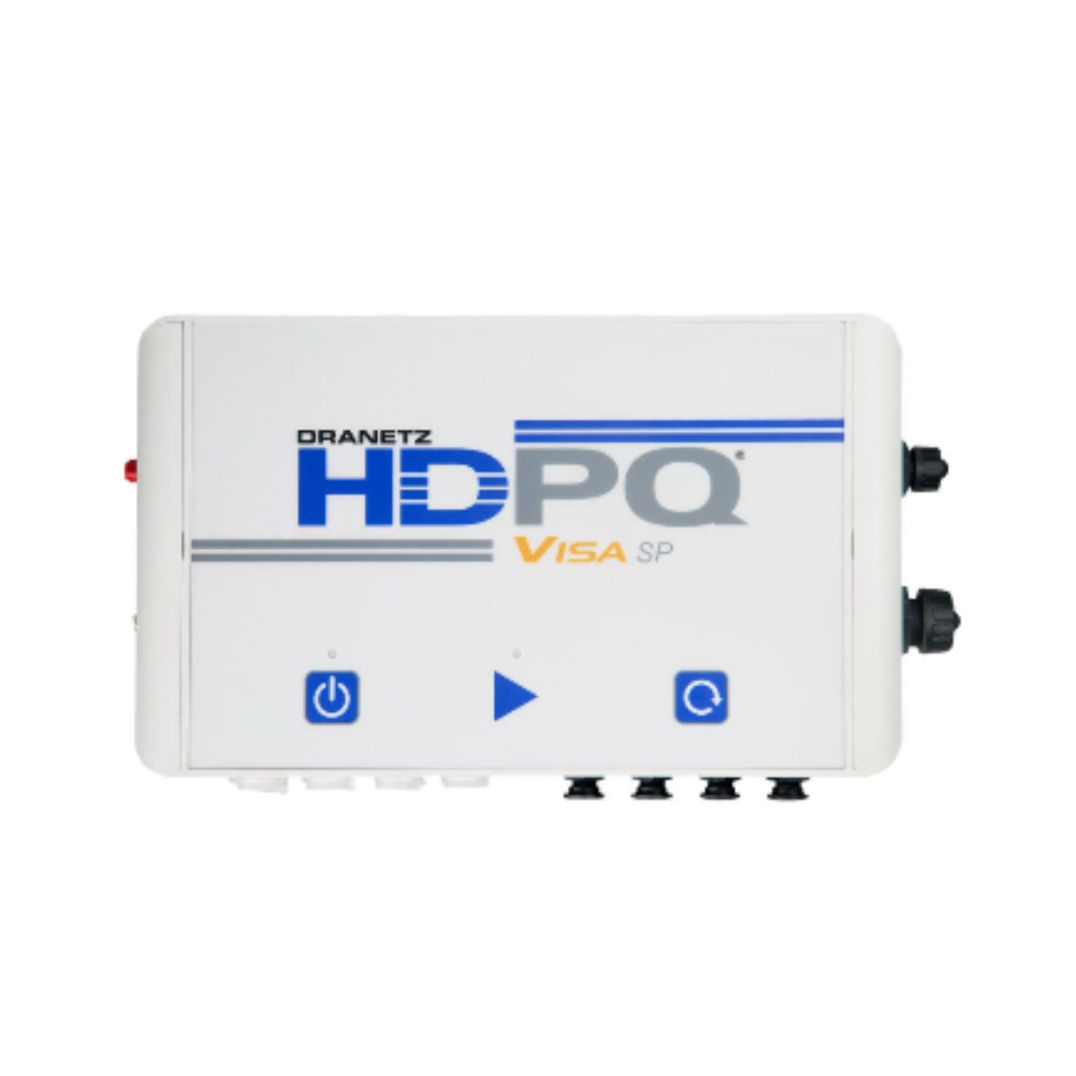

Dranetz HDPQ® Visa SP
Rated IP65

The Best Value in Power Quality Monitoring

The Dranetz HDPQ® Visa SP measures to all current industry standards, including IEC 61000-4-30 Class A Edition 31, IEC 61000-4-7, IEEE 1159, IEEE 519:2014 and more. It simultaneously captures and characterizes thousands of parameters by using a range of standard and customizable operating modes. The unique measurement capabilities include the capture of low and medium frequency transients through peak, waveshape, rms difference trigger methods. Applications include general purpose PQ, demand & energy monitoring, capacitor evaluations, harmonics & non-sinusoidal waveform troubleshooting and more.

Mobirise

Ease of Use Features

• Automatic Setups – Start monitoring in seconds!
• Pre-programmed monitoring modes – Pre-configured setups for various applications
• Dashboards – Power Quality, Demand & Energy – Immediately know when events have been recorded
• Simultaneous Power Quality, Demand & Energy monitoring
• Mini-Report – Take screen snapshots that can be uploaded to your computer and included in reports, attached to emails, etc.
• Power the instrument from the circuit being measured, or another source (SP Only)

• Detects & records sags/dips, swells, interruptions, transients, harmonics, flicker, RVC and more – Meets & Exceeds Industry Standards
• IEC 61000-4-30 Class A Edition 3 PQ compliant – Reliable Measurements from a Reputable Manufacturer
• Power Quality, demand & energy analysis – Complete Power Monitoring Surveys
• Measures, records and triggers on power parameters such as V, I, W, VA, VAR, PF, demand, energy & more
• Powered by the Phase Being Measured!
• IP65 enclosure
• Dran-View 7 Software – Powerful Data Analysis, Reporting & Remote Control
• Ethernet Communications for Remote Control & Data Downloading – Be Safe & Productive
• Tests 50/60Hz and 16/25Hz
• Also available as a true portable with a 7″ display – See the Dranetz HDPQ Visa Plus
• Made in the USA in our ISO 9001:2015 certified factory

(4) Differential Voltage: 16 bit resolution
• 0-1000Vrms, AC/DC, +/- 0.1% reading +/- 0.05% FS
• IEC 61000-4-30 Class A Ed 3: 60-1000Vrms, ±0.1 % of Udin, range of 10% ~ 150% of Udin
• Transients – 0-1414Vpk, +/- .2% of Udin


(4) Current: 512 samples/cycle, 16 bit resolution
• Range (rms) probe dependent, AC/DC, +/- 0.1% reading +/- 0.05% FS
• Transients – Range probe dependent


Frequency: 10 sec window
• 16-25Hz, 42.5-69Hz, +/- 0.01Hz


Distortion – 200ms, 3 sec, 10 min windows
• Vthd: 0-100%, +/- 5% for V>=1% Vnom,
• V Ind Harm: DC, 2-127, +/- 5% for V>=1% Vnom
• Ithd: 0-100%, +/- 5% for I>=1% Inom,
• I Ind Harm: DC, 2-63, +/- 5% for I>=1% Inom


Misc.
• Pst – 10 minutes: 0.2-10, +/- 0.05 @ Pst=1
• Plt – 2 hours: 0.2-10, +/- 0.05 @ Pst=1

Dranetz HDPQ Visa SP (IP65)
• Size: (11″w x 6.5″h x 2.5″d), (27.9cm x 16.5cm x 6.4cm)
• Weight: 3.8lbs, 1.72kg
• Operating temperature: -10 to 50 deg C (14 to 122 deg F)
• Storage temperature: -40 to 85 deg C (-40 to 185 deg F)
• Humidity: 10-90 non condensing
• Power Supply: 90-600VAC/500VDC (50/60Hz). Powered by the phase being measured, or other source

AC Adapter (12V): 100-240Vac 50/60Hz


Clock accuracy and resolution
• Internal: +/- 1 sec/day at 25 deg C
• NTP: +/-10 msec
• GPS: +/-1 msec


Battery capacity and charge time:
• Dranetz HDPQ Visa SP: 30 minutes run time on full charge, 3 hours charge time

Memory size: 4GB

Display: 7” WVGA color graphic, Icon based touch LCD, LED Backlit
Languages: English, German, Spanish, French, Italian, Swedish, Finnish, Polish, Chinese (traditional and simplified), Thai, Korean

• Ethernet
• Bluetooth (optional)
• USB On the Go (OTG)
• VNC remote control
• Android & Apple Apps

Power Quality
IEC 61000-4-30 Class A Edition 3
IEEE 1159: 2009

Power
IEEE 1459: 2000

Harmonics
IEC 61000-4-7 Class 1: Edition 2 (2008)
IEEE 519:2014

Voltage Flicker
IEC 61000-4-15: Edition 2 (2010)
IEEE 1453: 2011

Compliance/Testing
EN 50160: 2010

Power/Energy – 1 Second sampling
• Real Power (W) – P: meets 0.2S requirements, range probe dependent
• Apparent Power (VA) – S: meets 0.2S requirements, range probe dependent
• Reactive Power (var) – Q: meets 0.2S requirements, range probe dependent
• Power Factor (W/VA) -”true” -1 to 0 to 1
• Displacement PF -1 to 0 to 1
• Demand (in W): meets 0.2S requirements, range probe dependent
• Energy (in Wh): meets 0.2S requirements, range probe dependent
