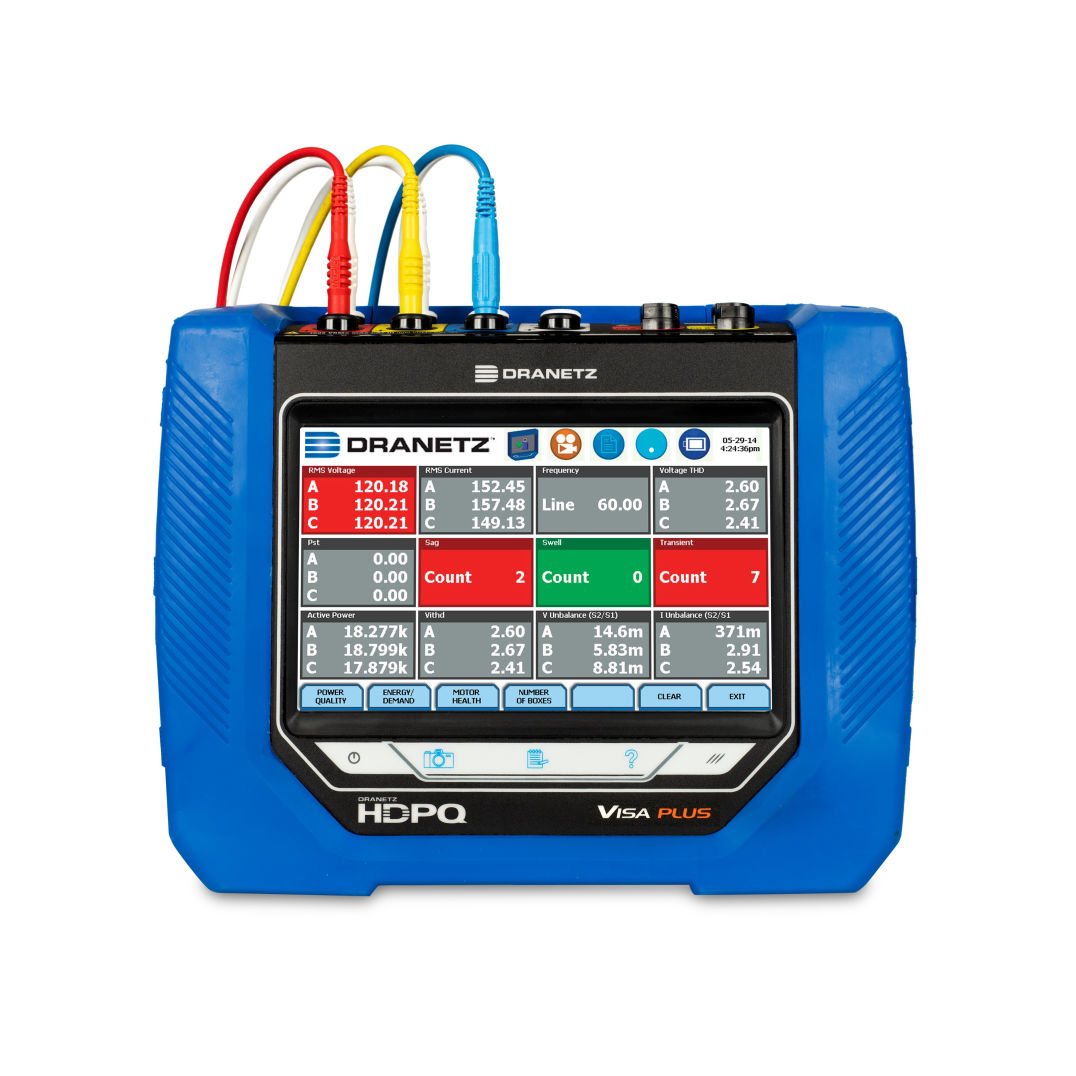

Dranetz HDPQ® Visa Plus

The Best Value in Power Quality Monitoring

The Dranetz HDPQ® Visa Plus measures to all current industry standards, including IEC 61000-4-30 Class A Edition 3, IEC 61000-4-7, IEEE 1159, IEEE 519:2014 and more. It simultaneously captures and characterizes thousands of parameters by using a range of standard and customizable operating modes. The unique measurement capabilities include the capture of low and medium frequency transients through peak, waveshape, rms difference trigger methods. Applications include general purpose PQ, demand & energy monitoring, capacitor evaluations, harmonics & non-sinusoidal waveform troubleshooting and more.

Mobirise

Dranetz HDPQ Visa Plus – Productivity

• Mini-Report – Screen snapshots, XML file. Easily uploaded and emailed!
• PQ & Energy Dashboard’s for real time alarming
• Bigger display for more productive local analysis
• Dran-View 7 power quality analysis software
• Rescue kit – Part of Dran-View 7. Correct problems with wiring, CT orientation, time errors and more
• Post processing – Part of Dran-View 7. Compute harmonics and other parameters from the waveforms recorded by the instrument

• Detects & records sags/dips, swells, interruptions, transients, harmonics, flicker, RVC and more – Meets & Exceeds Industry Standards
• IEC 61000-4-30 Class A Edition 3 PQ compliant (certificate) – Reliable Measurements from a Reputable Manufacturer
• Power Quality, demand & energy analysis – Complete Power Monitoring Surveys
• Measures, records and triggers on power parameters such as V, I, W, VA, VAR, PF, demand, energy & more
• 7″ color, touch LCD display
• Colored Cables & Connector Panel – Safety, Convenience & Ease Of Use
• Dran-View 7 Software – Powerful Data Analysis, Reporting & Remote Control
• Ethernet Communications for Remote Control & Data Downloading – Be Safe & Productive
• Tests 50/60Hz and 16/25Hz
• Also available in an IP65 enclosure with phase power – See the Dranetz HDPQ Visa SP
• Made in the USA in our ISO 9001:2015 certified factory

(4) Differential Voltage: 16 bit resolution
• 0-1000Vrms, AC/DC, +/- 0.1% reading +/- 0.05% FS
• IEC 61000-4-30 Class A Ed 3: 60-1000Vrms, ±0.1 % of Udin, range of 10% ~ 150% of Udin
• Transients – 0-1414Vpk, +/- .2% of Udin


(4) Current: 512 samples/cycle, 16 bit resolution
• Range (rms) probe dependent, AC/DC, +/- 0.1% reading +/- 0.05% FS
• Transients – Range probe dependent


Frequency: 10 sec window
• 16-25Hz, 42.5-69Hz, +/- 0.01Hz


Distortion – 200ms, 3 sec, 10 min windows
• Vthd: 0-100%, +/- 5% for V>=1% Vnom,
• V Ind Harm: DC, 2-127, +/- 5% for V>=1% Vnom
• Ithd: 0-100%, +/- 5% for I>=1% Inom,
• I Ind Harm: DC, 2-63, +/- 5% for I>=1% Inom


Misc.
• Pst – 10 minutes: 0.2-10, +/- 0.05 @ Pst=1
• Plt – 2 hours: 0.2-10, +/- 0.05 @ Pst=1

Dranetz HDPQ Visa
• Size: (10″w x 8″h x 2.75″d), (25.4cm x 20.3cm x 7.0cm)
• Weight: 4.2lbs, 2kg
• Operating temperature: 0 to 50 deg C ( 32 to 122 deg F)
• Storage temperature: -20 to 60 deg C (-4 to 131 deg F)
• Humidity: 10-90% non condensing

AC Adapter (12V): 100-240Vac 50/60Hz


Clock accuracy and resolution
• Internal: +/- 1 sec/day at 25 deg C
• NTP: +/-10 msec
• GPS: +/-1 msec


Battery capacity and charge time:
• Dranetz HDPQ Visa Plus: 3 hours run time on full charge, 3 hours charge time

Memory size: 4GB

Display: 7” WVGA color graphic, Icon based touch LCD, LED Backlit
Languages: English, German, Spanish, French, Italian, Swedish, Finnish, Polish, Chinese (traditional and simplified), Thai, Korean

• Ethernet
• Bluetooth (optional)
• USB On the Go (OTG)
• VNC remote control
• Android & Apple Apps

Power Quality
IEC 61000-4-30 Class A Edition 3
IEEE 1159: 2009

Power
IEEE 1459: 2000

Harmonics
IEC 61000-4-7 Class 1: Edition 2 (2008)
IEEE 519:2014

Voltage Flicker
IEC 61000-4-15: Edition 2 (2010)
IEEE 1453: 2011

Compliance/Testing
EN 50160: 2010

Power/Energy – 1 Second sampling
• Real Power (W) – P: meets 0.2S requirements, range probe dependent
• Apparent Power (VA) – S: meets 0.2S requirements, range probe dependent
• Reactive Power (var) – Q: meets 0.2S requirements, range probe dependent
• Power Factor (W/VA) -”true” -1 to 0 to 1
• Displacement PF -1 to 0 to 1
• Demand (in W): meets 0.2S requirements, range probe dependent
• Energy (in Wh): meets 0.2S requirements, range probe dependent
