Safety Connection Items

Magnetic Test Probes

Model: 606Mg4-IEC3

Insulated 4 mm banana (female) jack to 4 mm diameter magnet right- angle adapter. Rated 1000V CAT II & CAT III / 600V CAT IV, Reinforced insulation, Pollution degree 2, Current: 4A.

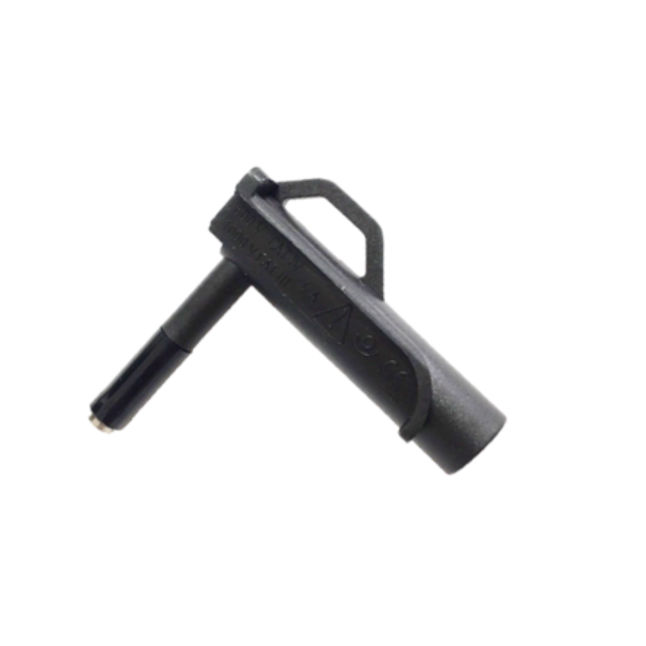

Model: 606Mg6.6-IEC3

Insulated 4 mm banana (female) jack to 6.6 mm diameter magnet right- angle adapter. Rated 1000V CAT II & CAT III / 600V CAT IV, Reinforced insulation, Pollution degree 2, Current: 4A.

Model: 606Mg8-IEC2

Insulated 4 mm banana (female) jack to 8 mm diameter magnet right- angle adapter. Rated 1000V CAT II & CAT III / 600V CAT IV, Reinforced insulation, Pollution degree 2, Current: 4A.

Model: 606Mg9-IEC2

Insulated 4 mm banana (female) jack to 9 mm diameter magnet right- angle adapter. Rated 1000V CAT II & CAT III / 600V CAT IV, Reinforced insulation, Pollution degree 2, Current: 4A.

Model: 606Mg10-IEC2

Insulated 4 mm banana (female) jack to 10 mm diameter magnet right- angle adapter. Rated 1000V CAT II & CAT III / 600V CAT IV, Reinforced insulation, Pollution degree 2, Current: 4A.

Model: 606Mg11-IEC2

Insulated 4 mm banana (female) jack to 11 mm diameter magnet right- angle adapter. Rated 1000V CAT II & CAT III / 600V CAT IV, Reinforced insulation, Pollution degree 2, Current: 4A.

Insulation Probe Test Clips

Insulation Piercing Probe Test Clip Part No.P209 (vampire clip)

Rated for CAT IV 600V & CAT III 1000 V, Widely used about the non-destructive cable test in Auto Power Industry, 4 mm banana (female) socket connection

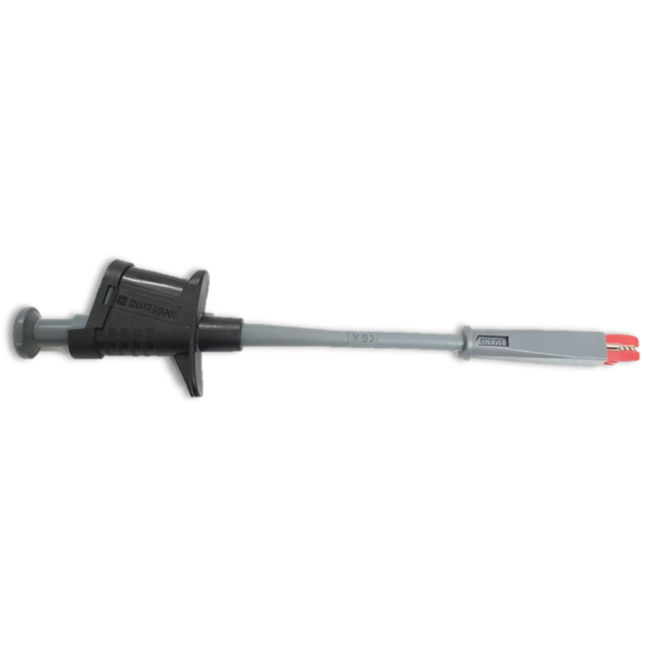

Alligator Jaw Part No.6007-IEC

Rated 1000V CAT II & CAT III / 600V CAT IV, Flexible Shaft Reinforced Insulation, Pollution Degree 2, 6A, 4 mm banana (female) socket connection

Alligator Clips

Part No.5066-IEC

Rated 1000V CAT II & CAT III / 600V CAT IV, Premium IEC Reinforced Insulation, Pollution Degree 2, 36A, 4mm banana (female) socket connection

Part No.P213

Rated 1000V CAT II / 600V CAT III, Premium IEC Reinforced Insulation, Pollution Degree 2, 10A, 4mm banana (female) socket connection

Part No.5004/LM-IEC

Rated 1000V CAT II & CAT III / 600V CAT IV, Premium IEC Reinforced Insulation, Pollution Degree 2, 20A, 4mm banana (female) socket connection

Test Lead Adaptors

Part No.AdaSpM3

4 mm banana (female) jack to M3 x 4 mm threaded stud adaptor, Color: Red, IEC 1010-1/1010-2-031

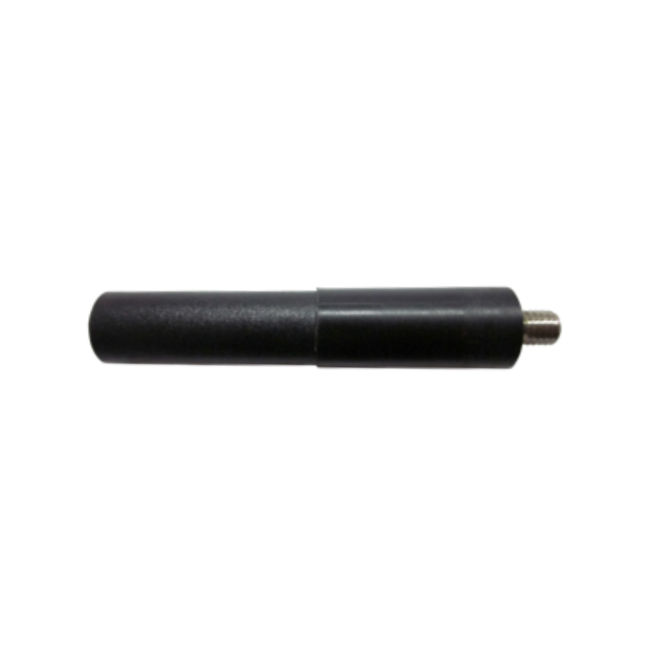

Part No.AdaSpM3.5

4 mm banana (female) jack to M3.5 x 6 mm threaded stud adaptor, Color: Black, IEC 1010-1/1010-2-031

Part No.AdaSpM4

4 mm banana (female) jack to M4 x 6 mm threaded stud adaptor, Color: Yellow, IEC 1010-1/1010-2-031

Part No.Ada3032

4 mm banana (female) jack to 4.3 mm spade lug adaptor, Color: Red, IEC 1010-1/1010-2-031

Part No.Ada3034

4 mm banana (female) jack to 4.3 mm / 6.3 mm spade lug adaptor, Color: Black, IEC 1010-1/1010-2-031

Voltage Clip & Leads

Part No.P203

Long wire piercing voltage clip,
Length 6 inches (15 cm)

Part No.P214

Insulated larger wire protector, Length 4 inches (10 cm), Rated 1000 V CAT III, Current: 4 A
Recommended size between 2 mm to 4 mm diameter.

Part No.P2310

4 mm banana (male) plug to 4 mm banana (male) plug lead, Reinforced insulation, Rated 1000 V CAT III, Current: up to 36 A, Available customs length

Part No.P2060

4 mm banana (female) plug to 4 mm banana (female) plug lead, Reinforced insulation, Rated 1000 V CAT III, Current: up to 36 A
Customs length are available.

Part No.P205-5/P205-5-5M

Set of 5 voltage test leads, Color: Red, Black, White, Blue & Green, (P205-5) Length 72 inches (183cm), (P205-5-5M) Length 16 feet (5 m), Custom lengths are available,

Mobirise
Part No.P211A: Fuse lead adapter (only)

P211A: Fuse lead adapter (only)

IEC Rating (probe body) = 1,000 V CAT IV
Voltage (fuse) =1000 V
Current (fuse) = 0.5 A
Interrupt Rating (fuse) = 50 kA
Operating Temperature =  5°C to 40°C (41°F to 104°F)
Storage Temperature =  -10°C to 55°C (14°F to 131°F)
RoHS (2011/65/EU) =  Compliant

Mobirise
Part No.P211C: Fuse lead adapter with 8 ID rings

P211C: Fuse lead adapter comes with a set of 8 ID rings to identify multiple fuse adapters and organize the testing area. The ID rings come in black, brown, red, orange, yellow, blue, grey, white.

IEC Rating (probe body) = 1,000 V CAT IV
Voltage (fuse) =1000 V
Current (fuse) = 0.5 A
Interrupt Rating (fuse) = 50 kA
Operating Temperature = 5°C to 40°C (41°F to 104°F)
Storage Temperature = -10°C to 55°C (14°F to 131°F)
RoHS (2011/65/EU) = Compliant
